Prior to construction the Spool Rig was drawn on Auto Cad and the hydraulic system was designed. The steel structure was designed similar to those used by Acme Rigging of Ukiah however instead of a transmision/chain drive system a Hydraulic system was designed to power the unit. The system incorporates a Kubota 4 cylinder diesel engine, pressure compensated pump, open center valve, radial piston motor, caliper brake and electric valves to operate the brake.
Preliminary Work:

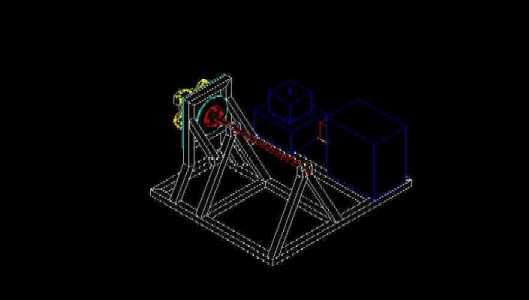

Auto Cad Drawing of Spool Rig
Construction:

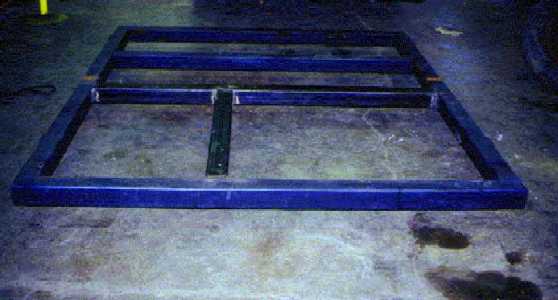

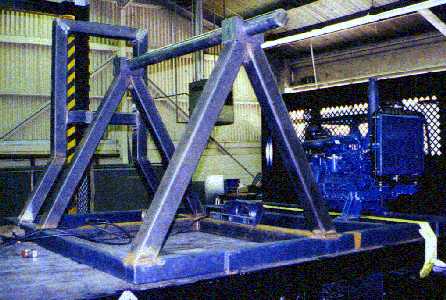

Base Frame

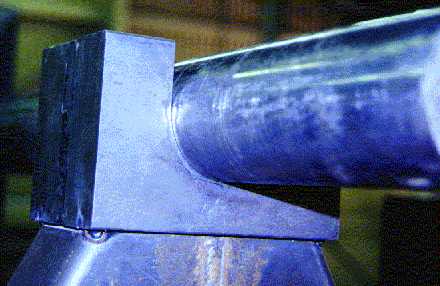

Shaft Saddles
Frame Assembly

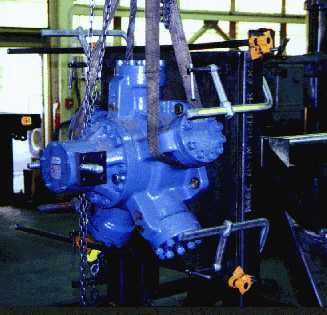

Motor Alignment

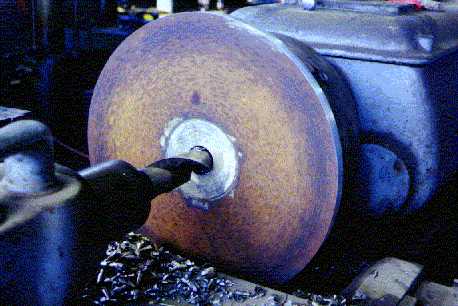

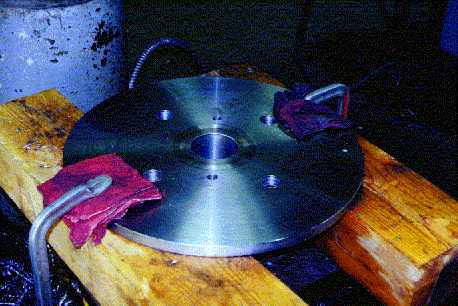

Drilling Coupler
Machined Coupler

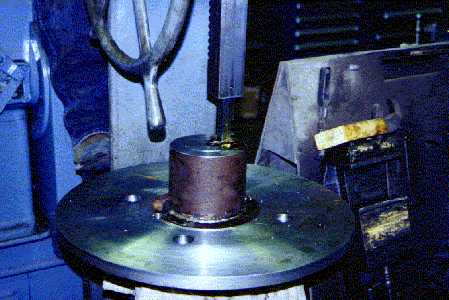

Cutting Key Way

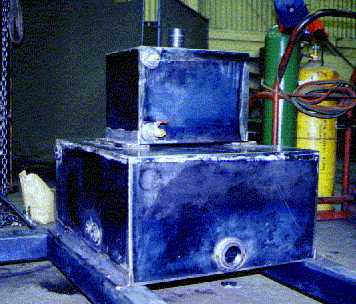

Fuel and Oil Tanks

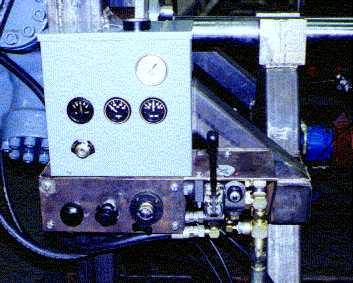

System Controls

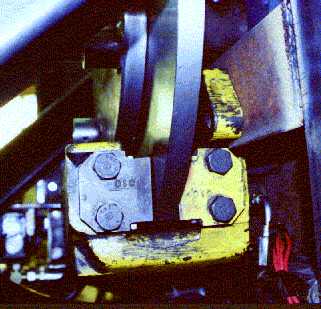

Caliper Brake

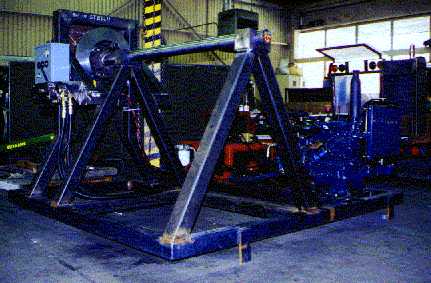

Completed Assembly
Completed Spool Rig returning from action
